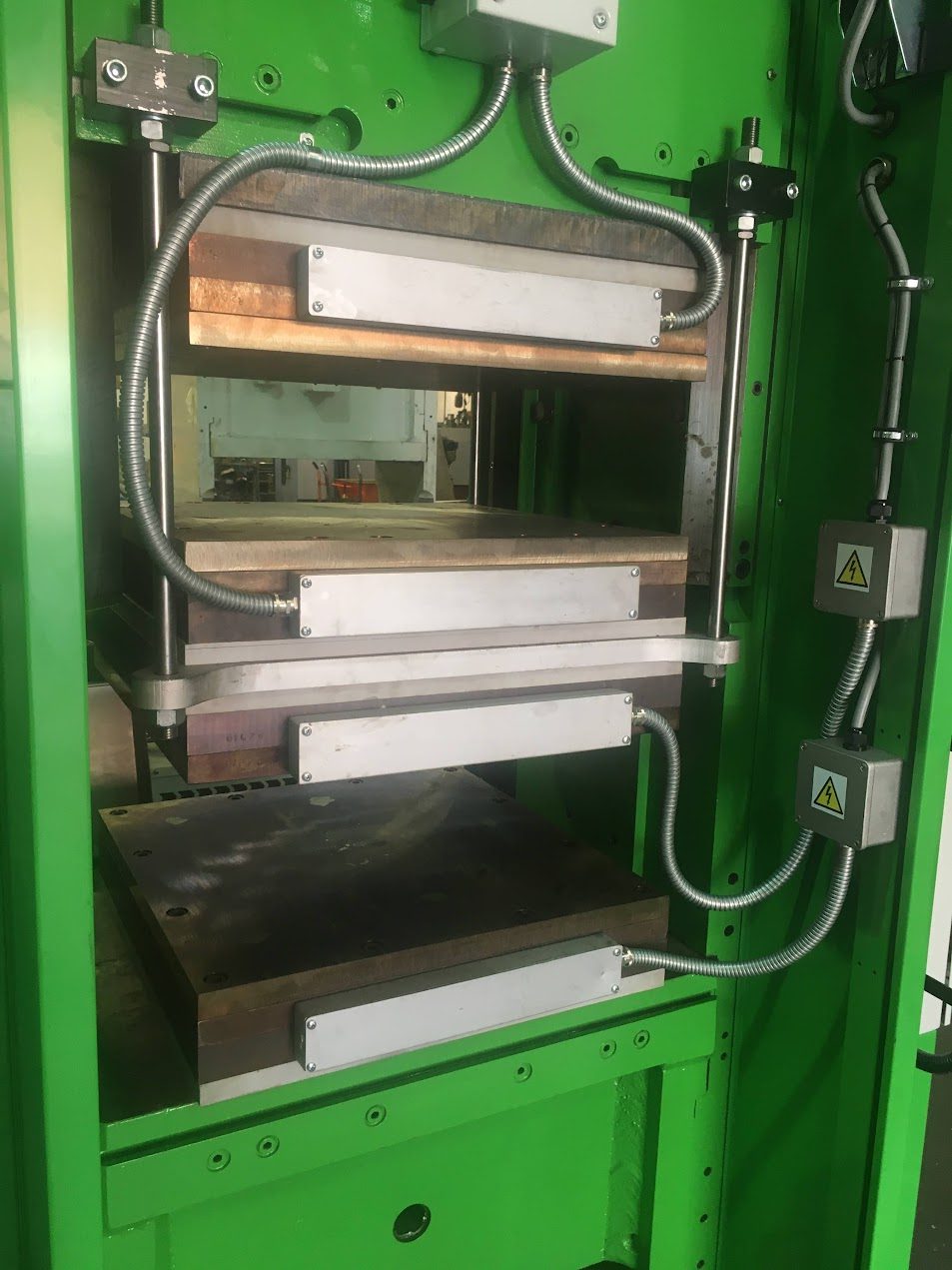

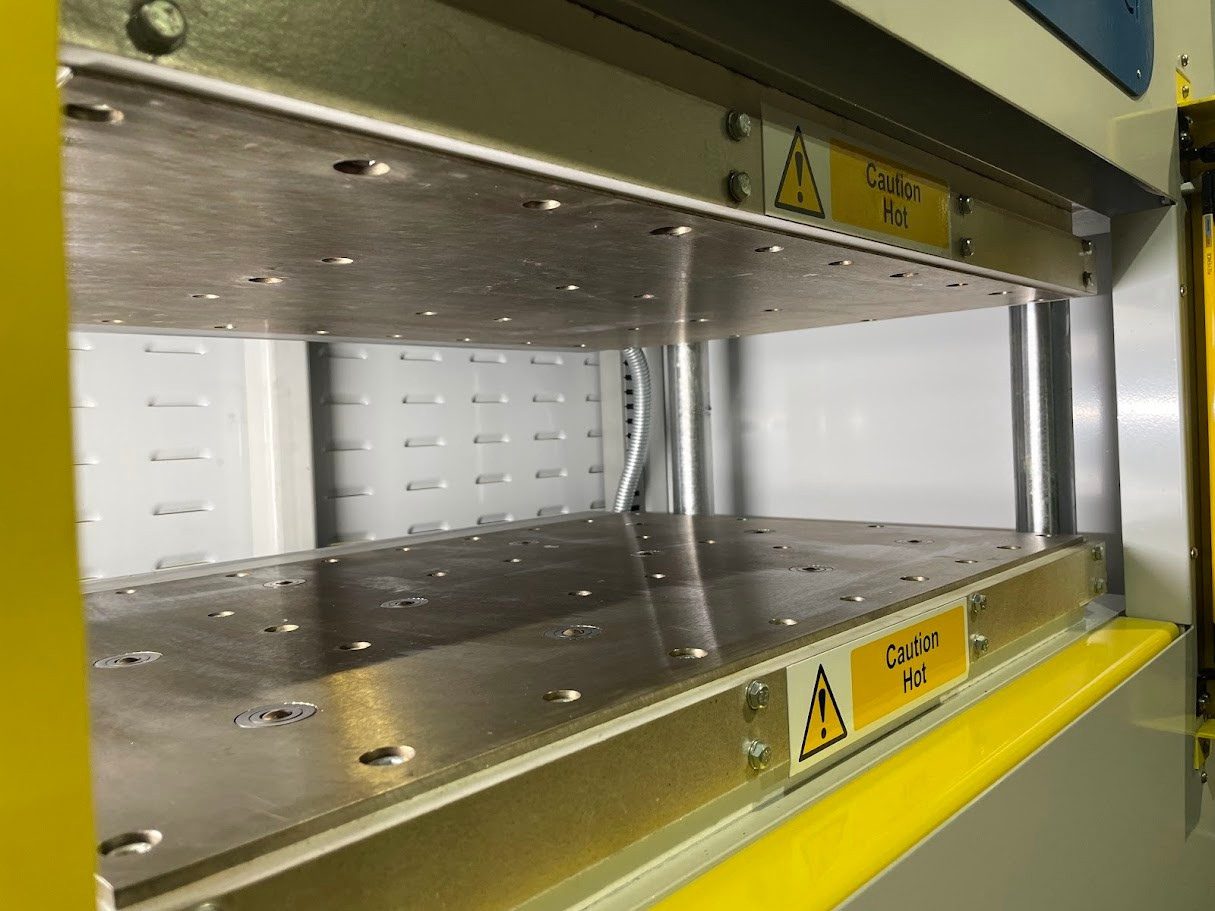

Heated Platens for Industrial Presses:
- All standard Platens are capable of heating ambient to 200°C in 45 minutes.
- Standard temperature platens will operate continuously at 200°C.
- Custom manufacturing to meet your requirements.
- Water and/or air-cooled platens available.
- All platens come with standard thermocouple.

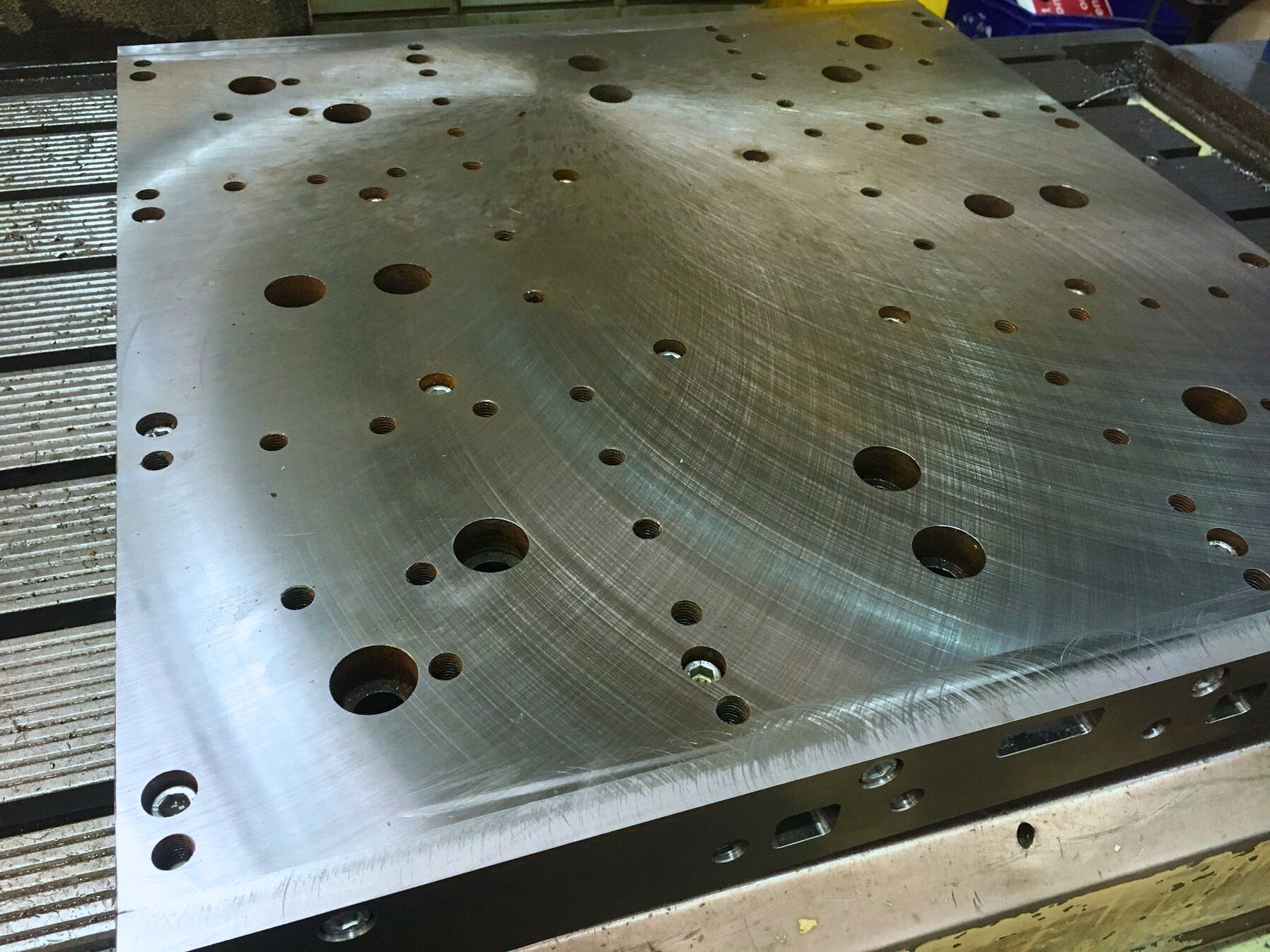

- Platen to press fixing holes to specification.
- Centre Transfer Hole can be provided.
- Platens to suit multi-daylight press.
- Can operate in a vacuum or contained zone.
- Multi-zone controlled platens.
Our Services Include:
Electric Heated Platens (up to 430°C) Our electric platens are designed for high-performance applications requiring precise and uniform heat distribution. These platens are perfect for industries that demand reliable heating for moulding, pressing, and other demanding applications.
- Induction (up to 250°C)
- Cartridge (up to 430°C)
- Strip heater (up to 250°C)
Oil Heated Platens (up to 300°C) For more traditional and high-capacity industrial press applications, our oil-heated platens offer unparalleled performance. These platens are ideal for industries that require reliable, steady heat distribution for extended periods.
| Size | Typical KVA Rating | VOLTS | NO. of Phases | |
|---|---|---|---|---|
| Inches | Millimetres | |||
| 12″ x 12″ x 2″ | 305 x 305 x 59 | 1.8 | 240 | 1 |
| 14″ x 14″ x 2″ | 356 x 356 x 59 | 2.5 | 240 | 1 |
| 16″ x 16″ x 2″ | 406 x 406 x 59 | 3.25 | 240 | 1 |
| 18″ x 18″ x 2″ | 457 x 457 x 59 | 4.0 | 240 | 1 |
| 20″ x 20″ x 2″ | 508 x 508 x 59 | 5.0 | 240 | 1 |
| 20″ x 20″ x 2″ | 508 x 508 x 59 | 5.0 | 415 | 3 |
| 24″ x 24″ x 2″ | 610 x 610 x 71 | 8.0 | 415 | 3 |
| 28″ x 28″ x 2″ | 710 x 710 x 71 | 10.0 | 415 | 3 |
| 30″ x 30″ x 2″ | 762 x 762 x 71 | 12.0 | 415 | 3 |
| 32″ x 32″ x 2″ | 813 x 813 x 71 | 13.0 | 415 | 3 |
| 36″ x 36″ x 3″ | 914 x 914 x 78 | 17.5 | 415 | 3 |
| 48″ x 48″ x 3″ | 1219 x 1219 x 79 | 30.0 | 415 | 3 |
Additional Services:
- Repairs and refurbishment
- In-house design to meet your specific needs
JRD BIPEL understands that every industrial application has unique requirements. To ensure maximum efficiency and performance, our platens come with a variety of temperature control options, including manual controls or PLC integration.(To Learn More about the principals of Operation: Click here.) With these options, you can seamlessly integrate temperature regulation into your existing systems for greater precision and automation. Whether you need to cool the platen quickly after heating or manage thermal load during extended operations, our cooling systems help maintain precise temperature control and prevent overheating. Contact us today to find the ideal solution for your press.
